How to Build a Generic Concrete Slab for a Swim Spa

Are you planning to install a Spa World swim spa? This guide details the approved design and compliance requirements for a concrete slab that supports a swim spa up to 6,000 mm in length, ensuring safety and durability.

Constructing a stable and compliant base for your Spa World swim spa is crucial for safety and longevity. This article covers the essential design standards, construction criteria, and compliance requirements for a generic concrete slab designed to support a swim spa.

Key Takeaways

  • Proper Generic Swim Spa Slab Construction: Ensure durability by following recommended construction practices, including reinforcement, vapour barrier, and concrete curing.
  • Swim Spa Slab Standard Dimensions: Designed for swim spas up to 6200 mm long and 2500 mm wide, with a 150 mm thickness.
  • Compliance: Meets NCC 2019 standards and Australian standards AS/NZS 1170, AS 2870, AS 3600, and AS 4100 for safety.
  • Materials: Requires 25 MPa concrete with 65 mm slump, SL82 mesh reinforcement, and 60 mm clear cover.
  • Exclusions: The information in this article is not for non-generic slab construction. Examples of that are: when the spa pool is larger than the Generic Dimensions, the soil does not comply with the generic type, and there are trees, slope or moisture issues.

Click the button below to access the swim spa generic slab design certificate of compliance.

Swim Spa Generic Slab Design

If you're looking for a complete guide to constructing a generic portable spa pool concrete or pad, click the button below.

How to Build a Generic Concrete Slab for a Portable Spa Pool

What are the Generic Slab Design Specifications for a Swim Spa?

When building a generic slab for a swim spa, specific standards ensure it safely supports the spa’s weight, covering slab thickness, concrete strength, and reinforcement.

In this section, we’ll outline the essential design criteria to ensure stability, safety, and compliance with building codes.

Generic Concrete Pad For Swim Spas - Plan View

generic-concrete-pad-for-swim-spas

Generic Concrete Pad For Swim Spas - Side View

generic-concrete-pad-for-swim-spas

Concrete Slab Design

Size Requirements: The slab is designed for a maximum 6,000 mm length swim spa model.

  • Load Specifications:
  • Distributed Live Load: 5 kN
  • Dead Load: 100 kN, following AS/NZS 1170.1 specifications.
  • Minimum Slab Thickness: The slab thickness increases by 150 mm.
  • Concrete Strength: Minimum strength of 25 MPa with a 65 mm slump, compacted with mechanical vibration.

These specifications ensure the slab can withstand the weight and operational demands of a full swim spa.

How Should the Concrete Generic Swim Spa Slab be Reinforced and Supported?

Proper reinforcement is critical for the stability and durability of the swim spa slab. Reinforcement details include:

  • Slab Thickness: 150 mm R.C. (reinforced concrete) infill slab on the ground.
  • Reinforcement Mesh: SL82 mesh is used on both the top and bottom layers.
  • Clear Concrete Cover: Minimum 60 mm cover to protect the reinforcement from exposure and corrosion.
  • Lapping Requirements: Reinforcement mesh should have a minimum lap of 225 mm in both directions.
  • Joint Requirements: Tool or saw-cut joints must be provided at 3000 mm centres to allow for controlled movement.
  • Vapour Barrier: A 0.2 mm vapour barrier is required beneath the slab to prevent moisture ingress, with a 50 mm sand layer above.

These reinforcement details help distribute the load evenly and reduce stress on the slab.

What are the Soil and Load-Bearing Requirements for a Generic Swim Spa Slab?

The slab’s performance is also affected by the soil it’s founded on. The requirements are:

Minimum Allowable Bearing Pressure: 50 kPa. Foundation Requirements: Edge beams and load-bearing ribs should be supported by undisturbed ground with sufficient bearing capacity as specified by AS 2870.

These criteria ensure that the slab has a stable base and can handle the weight without sinking or shifting.

In Summary

Constructing a compliant and sturdy slab is crucial for safely supporting a swim spa. Adhering to the recommended dimensions, materials, and reinforcement guidelines helps establish a stable and secure foundation.

If your site conditions vary or need adjustments, consulting a certified engineer can ensure compliance with local building standards and provide added assurance.

Contact Spa World

Related Articles

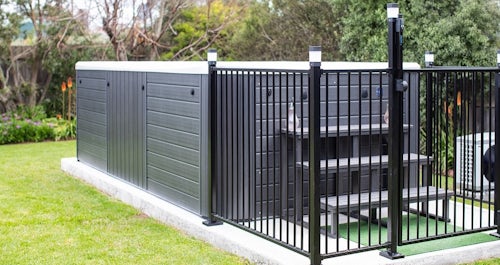

spa foundation hero
